AT3
Product Service
AT10-K

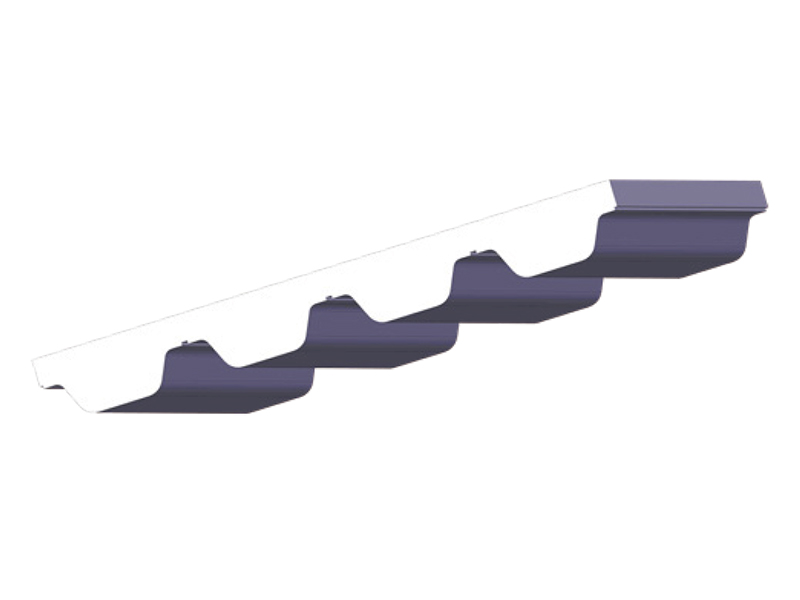

Thermoplastic polyurethane synchronous belt can be made into a circular shape by toothed connection.
The strength of the interface position is about 50% of the strength of the belt body.
The connecting belt can only be used for conveying equipment.
Additional NFT, NFB, PU, and APL roll materials can also be connected in a looped manner.
| STANDARD WIDTHS(mm) | 10 | 25 | 32 | 50 | 75 | 85 | 100 |
| WEIGHT(g/m) | 59 | 148 | 189 | 295 | 443 | 502 | 590 |
| MATERIAL | Thermoplastic Polyurethane | ||||||
| COLOR | White | ||||||
| HARDNESS | 92±3 Shore A | ||||||
| BACK COVER | None(Customizable) | ||||||
| FABRIC | None(Customizable) | ||||||
| TENSION CORD | Kevlar | ||||||
| WIDTH TOLERANCE | ±0.5 mm | ||||||
| THICKNESS | 4.5 ± 0.2 mm | ||||||
| LENGTH TOLERANCE | ±0.8 mm/m | ||||||
| ROLL LENGTH | 100 m(Customizable) | ||||||
| PITCH | 10 mm | ||||||
